背景

公司门户系统有一个显示待办消息的需求，要求其他系统产生的待办消息要及时的在门户系统中展示，网上查找了解到有ajax轮询和websocket两种主要方式，为了及时性，最终选择了websocket方式。

整体思路

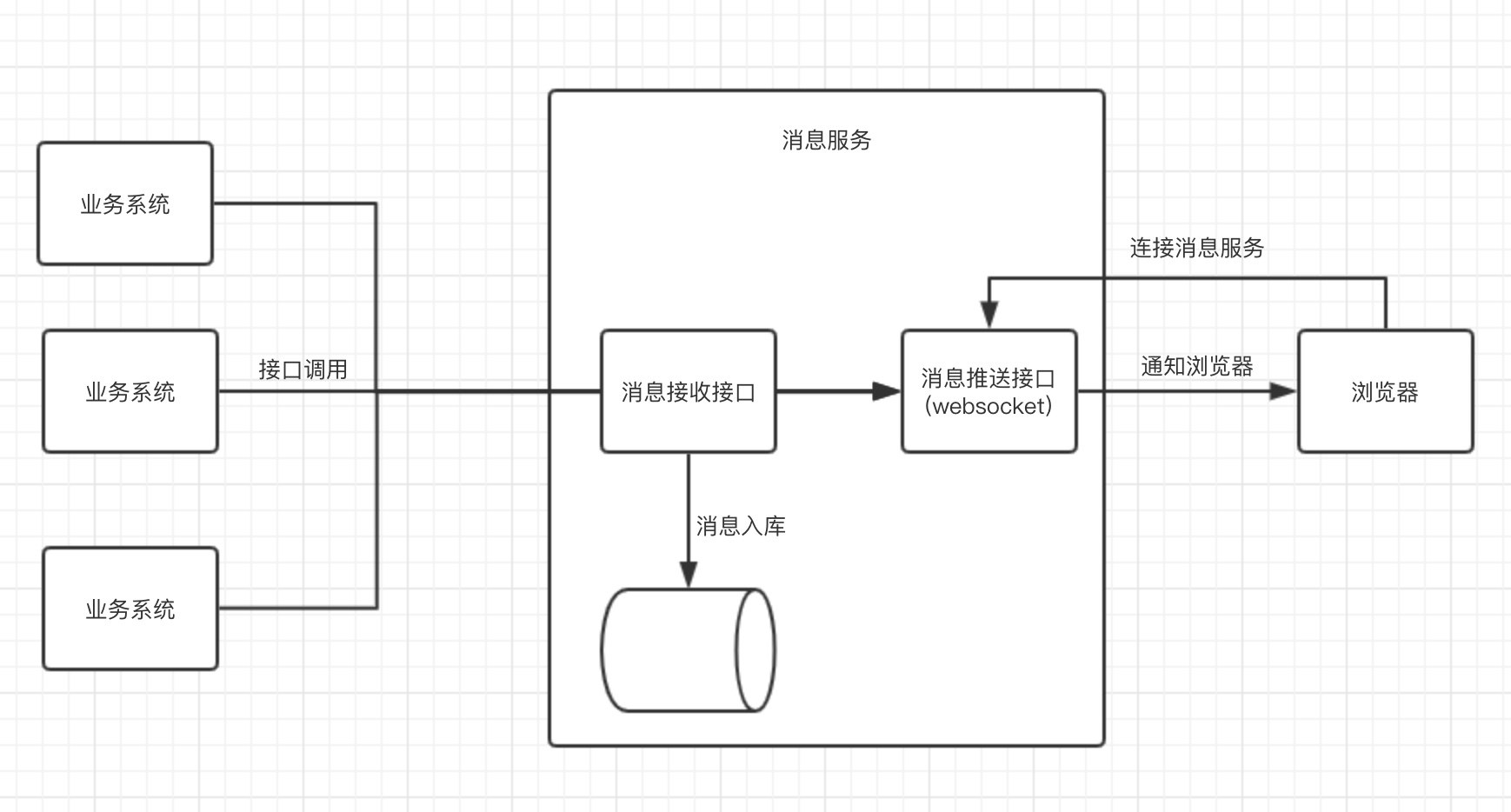

一图胜千言

代码

  • 前端

    <!-- websocket-->
    <script type="text/javascript">
        var msgTypes = {
            1:'db',
            2:'dy',
            3:'yj',
            4:'gwdb'
        }
        userId = '<ww:property value="#session.sUser.userId" />';
        //定义websocket
        var ws = new WebSocket("ws://localhost:8888/msg/ws");
        //维持心跳
        var heartCheck = {
            timeout: 19000,//19s
            timeoutObj: null,
            reset: function(){
                clearInterval(this.timeoutObj);
                this.start();
            },
            start: function(){
                this.timeoutObj = setInterval(function(){
                    if(ws.readyState==1){
                        ws.send("HeartBeat");
                    }
                }, this.timeout)
            }
        };
        //连接websocket
        ws.onopen = function()
        {
            var msg = 'userid='+userId;
            console.log("open and send message："+msg);
            // 发送消息
            ws.send(msg);
            heartCheck.start();
        };
        //接收消息
        ws.onmessage = function(evt)
        {
            console.log("get message:"+evt.data);
            heartCheck.reset();
            if(evt.data.startsWith('您')){//提示消息
                $("#msg_tip").text(evt.data);
                console.log('显示tip')
                $("#msg_tip").fadeIn();
            }else{
                var typeId = 'span#'+msgTypes[evt.data.split(':')[0]];
                $(typeId).html(evt.data.split(':')[1]);
                if($navTab.getTab('dirMsg')!= ''){
                    debugger;
                    //$navTab.refreshCurrentTabForm('dirMsg');
                    $forms = $("#dirMsg").find('.table-form');
                    for(var i=0;i<$forms.length;i++){
                        $navTab.submitForm($forms[i]);
                    }
                }
            }
        };
        //关闭连接
        ws.onclose = function(evt)
        {
            console.log("WebSocketClosed!");
        };
        //发生异常
        ws.onerror = function(evt)
        {
            console.log("WebSocketError!");
            ws = null;
        };
        window.onunload = function(event){
            if(ws){
                ws=null;
            }
        };

  • 后端（tomcat8)

    package com.css.apps.msg.websocket;

/**
 * @Author: haoming
 * @Date: 2019/5/8 11:22 PM
 * @Version 1.0
 */

import com.css.apps.msg.constant.MsgType;
import com.css.db.query.QueryCache;
import org.apache.commons.logging.Log;
import org.apache.commons.logging.LogFactory;

import javax.websocket.*;
import javax.websocket.server.ServerEndpoint;
import java.io.IOException;
import java.util.HashMap;
import java.util.Map;

/**
 * @Author: haoming
 * @Date: 2019/5/6 7:07 PM
 * @Version 1.0
 */
@ServerEndpoint(value = "/ws")
public class WsServlet {
    private static Log log = LogFactory.getLog(WsServlet.class);
    //设置Map,存放每个用户的连接
    public static Map<String,WsServlet> webSocketSet = new HashMap<String,WsServlet>();
    //浏览器与服务端的回话，浏览器每new一个WebSocket就创建一个session，关闭或刷新浏览器，session关闭
    private Session session;
    //代表浏览器
    private String userid;
    /**
     * 推送消息接口
     * 外部可以进行调用
     * @param sendMsg
     * @throws IOException
     */
    public void sendMsg(String sendMsg) throws IOException {
        log.info(this.userid+"发送消息:"+sendMsg);
        this.session.getBasicRemote().sendText(sendMsg);
    }

    @OnOpen
    public void onOpen(Session session) throws IOException {
        this.session = session;
        log.info(this+"有新连接,session="+session+";userid="+userid);
    }

    @OnClose
    public void onClose() {
        webSocketSet.remove(this.userid);
        log.info(this.userid+"；连接关闭");
    }

    @OnMessage
    public void onMessage(String info) throws IOException {
        log.info(this.userid+"；来自客户端的消息:" + info);
        String msg = "服务端接收到了来自客户端的消息："+info;
        if(info.contains("userid")){
            this.userid = info.split("userid=")[1];
            log.info("this.userid="+this.userid);
            webSocketSet.put(userid, this);
            //发送初始待办数量
            sendMsg("1:"+getMsgNum(userid, MsgType.DAIBAN));
            sendMsg("2:"+getMsgNum(userid, MsgType.DAIYUE));
            sendMsg("3:"+getMsgNum(userid, MsgType.YOUJIAN));
            sendMsg("4:"+getMsgNum(userid, MsgType.GWDAIBAN));
        }
    }

    @OnError
    public void onError(Throwable error) {
        log.error(this.userid+"；发生错误",error);
    }

    private String getMsgNum(String userId,Integer msgType){
        String sql = "";
        sql = "select count(a.uuid) from Msg a where a.receiver =:userId " +
                "and a.msgType =:msgType and a.msgStatus = 1";
        QueryCache qc = new QueryCache(sql);
        qc.setParameter("userId",userId);
            qc.setParameter("msgType",msgType);
        return qc.uniqueResult().toString();
    }
}

  • 总结(问题)

    1. 前端添加心跳机制防止连接超时断开，但发送心跳的时间网络上未找到具体的应该根据什么来设置？。

    2. 利用如下代码测试最大连接数

      for (var i = 0; i < 300; i++) {
        sleep(5)
        websocket();
    }

    function websocket() {
        var wsUri = "ws://localhost:8888/msg/ws";
        var ws = new WebSocket(wsUri);
        ws.onopen = function () {
            ws.send("User connected");
        };
        ws.onmessage = function (e) {
            console.log(e.data)
        };
        ws.onclose = function () {
            console.log("User disconnected");
        };
    }

    function sleep(n) {
        var start = new Date().getTime();
        while (true)
            if (new Date().getTime() - start > n) break;
    }

      发现浏览器最大连接数达到200时，其他连接无法连上，修改tomcat的连接数等配置，会有小幅度增加，达到了256，但不理想?，tomcat配置如下：

      <Executor maxThreads="500" minSpareThreads="20" name="tomcatThreadPool" namePrefix="catalina-exec-"/>
    <Connector URIEncoding="UTF-8" acceptCount="300" connectionTimeout="20000" enableLookups="false" executor="tomcatThreadPool" port="8080" protocol="org.apache.coyote.http11.Http11NioProtocol" redirectPort="8443"/>
